R Series Shading System

J Geiger’s flagship R Series Shading System was designed to be seen. Unsightly wires and screws are concealed within the system, eliminating the need for valances, fascia, and ceiling pockets.

System Specs

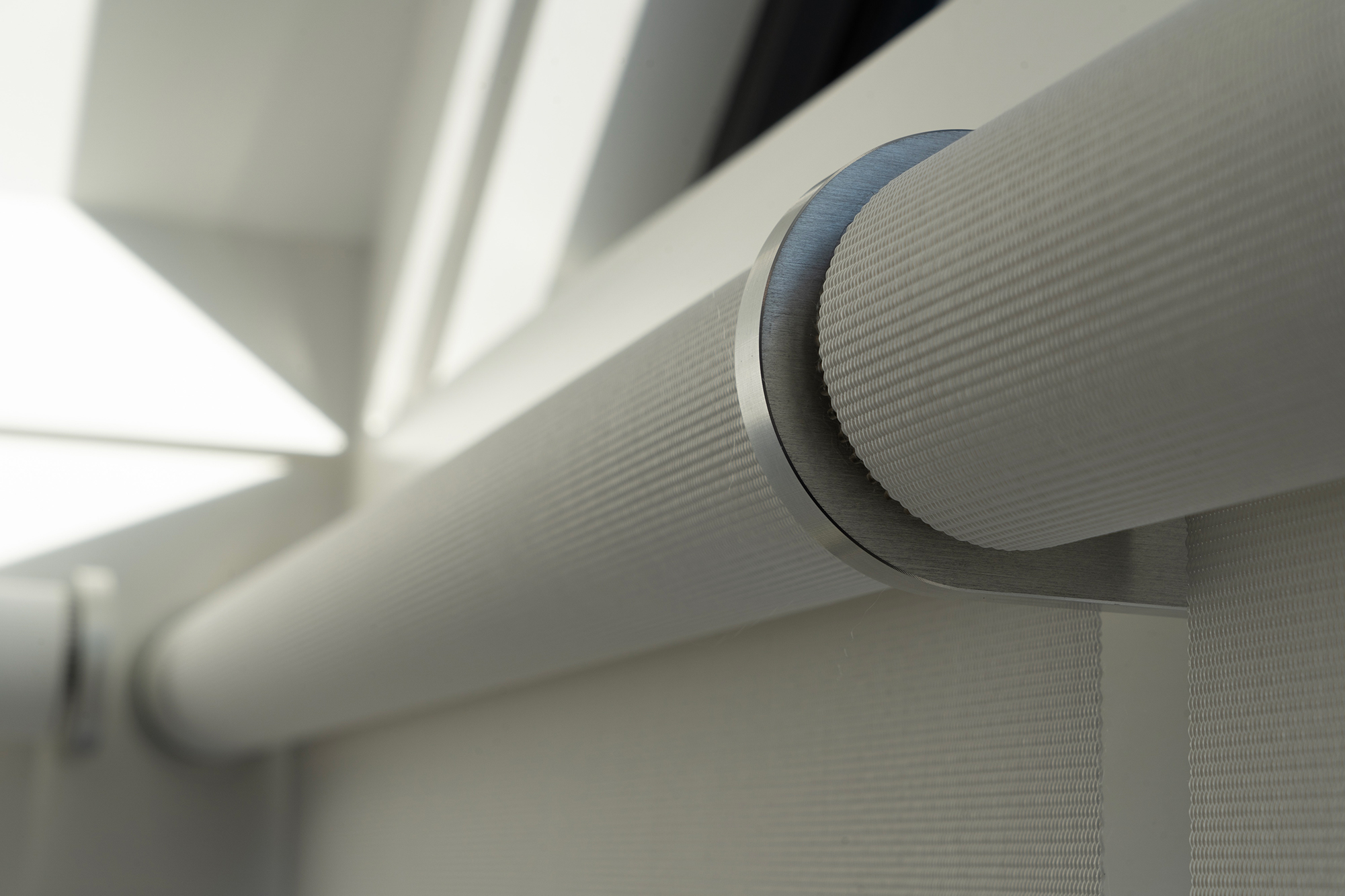

R Series can be configured to accommodate unique architectural elements. Diameter of the shade roll matches bracket profile, ensuring a seamless transition from shade to bracket. When shades are mounted in series, the matching profiles form a clean, continuous line.

Mounting Options:

  • Jamb Brackets (R1 and R2) can be mounted inside the window casing for a low-profile look. Each bracket is under 2.5” in diameter and suitable for 3” window jamb.

  • Mini Brackets (R1M and R2M) can be used for narrow jamb mount applications Each bracket is 2” wide and suitable for 2.5” jamb.

  • Floating Brackets (R3 and R4) can be mounted outside of the window casing (to wall or ceiling).

  • Coupler Brackets (R5) can be mounted between shade rolls to create a shade wall.

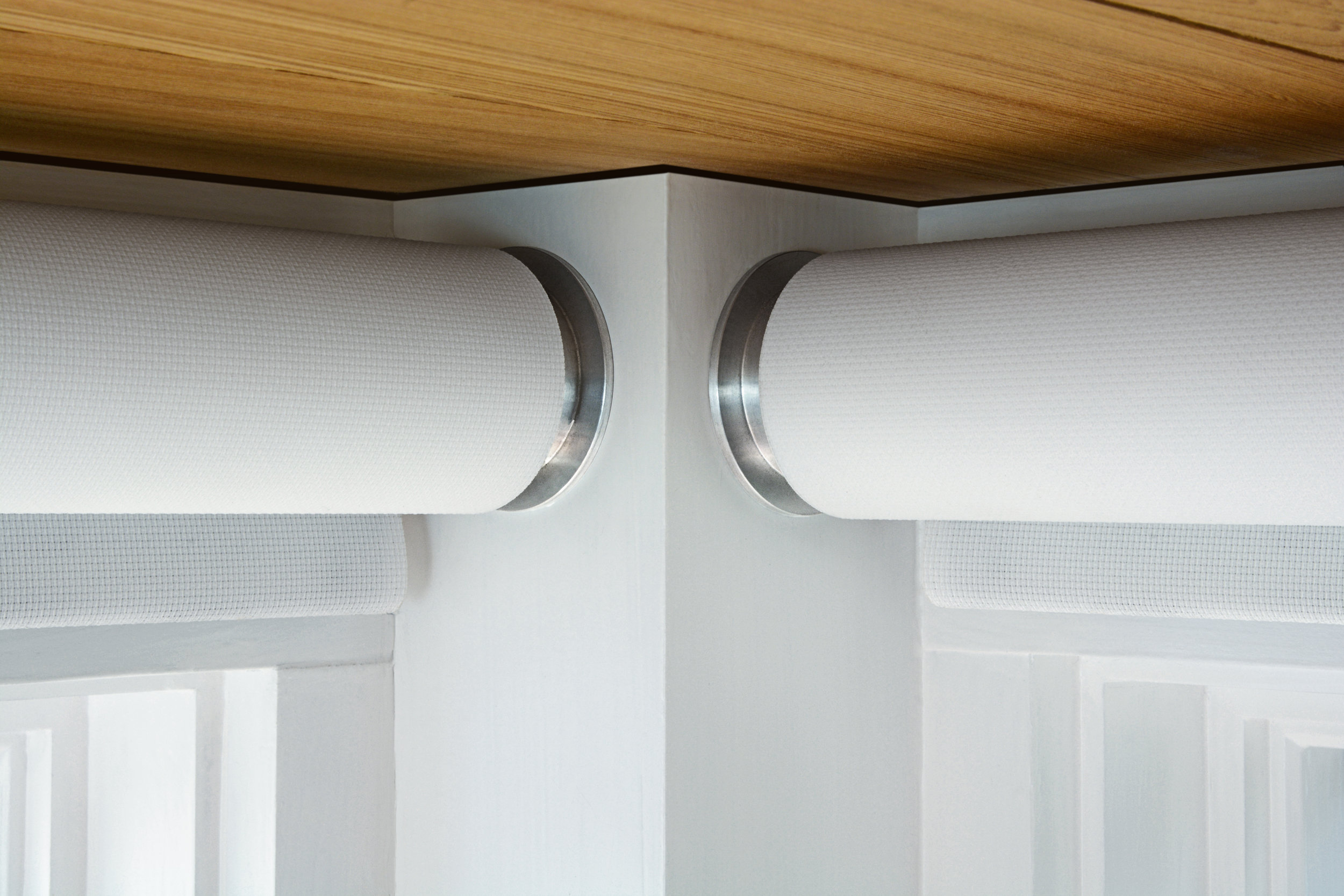

  • 90° Brackets can be mounted into corners.

Hardware Specs:

  • Milled from solid aluminum in the United States

Color Options:

  • Aluminum (anodized clear)

  • Black (anodized black)

  • Custom Color (powder-coated)

Download Technical Specs

Power Options


Wired Motors

  • Wired motors are smart home compatible and can be seamlessly integrated with Savant, Crestron, Lutron and Control 4 systems.

  • For homes and businesses without control systems, wired motors can be linked to a keypad, remote, or app for smartphone or tablet control.

Battery Motors

  • Battery powered motors are rechargeable and can last over a year on a single charge.

  • Battery life depends on shade size and frequency of use.

  • Batteries remain in the shade tube while charging, eliminating the need to change batteries.

  • Battery motors can be remote, keypad, or voice* controlled.

*Hub required for voice control.

Fabric Options


J Geiger shades are handcrafted in Charleston, SC. Each shade is tailored to unique project specifications, and fabric can be special ordered to suit your personal aesthetic and privacy preferences.
